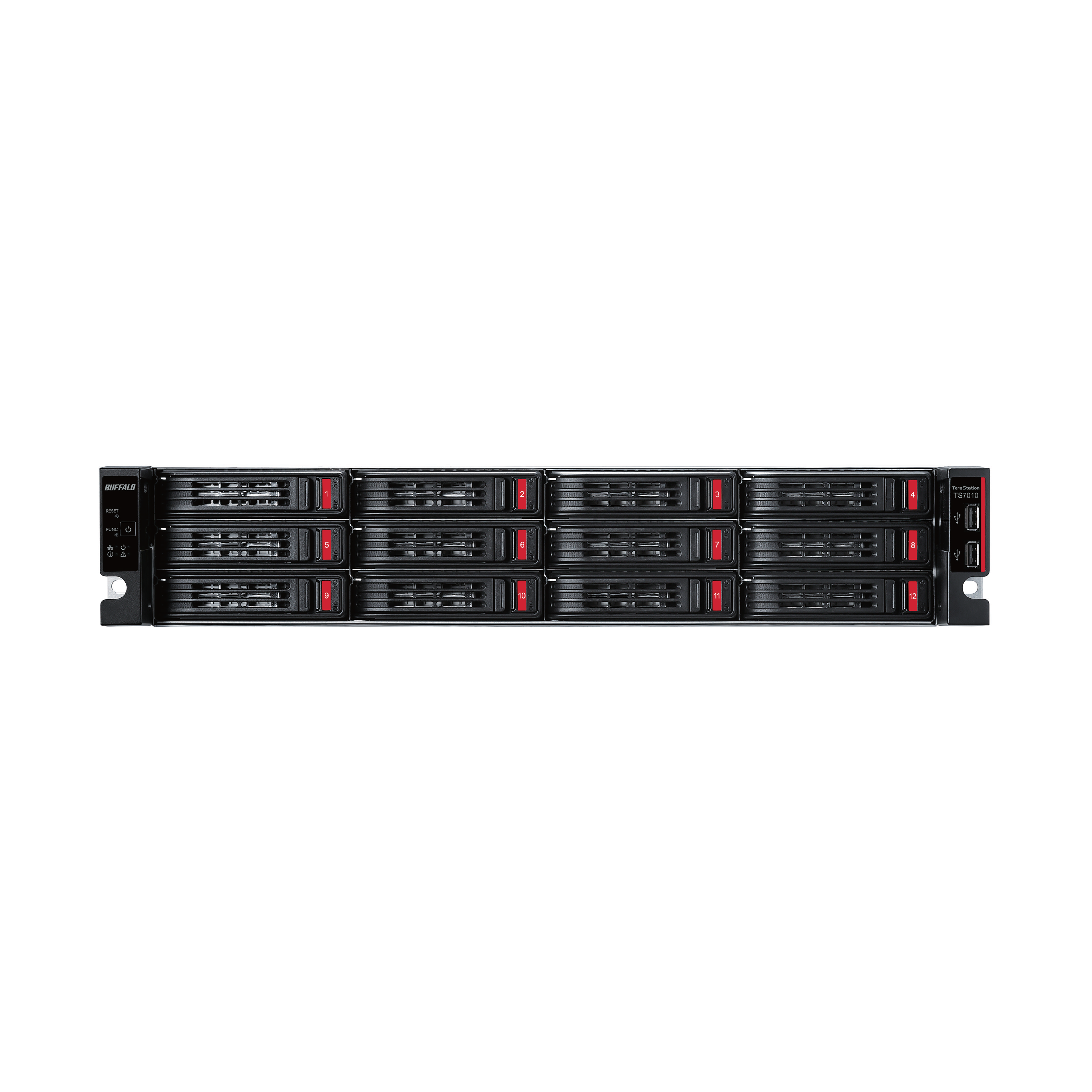

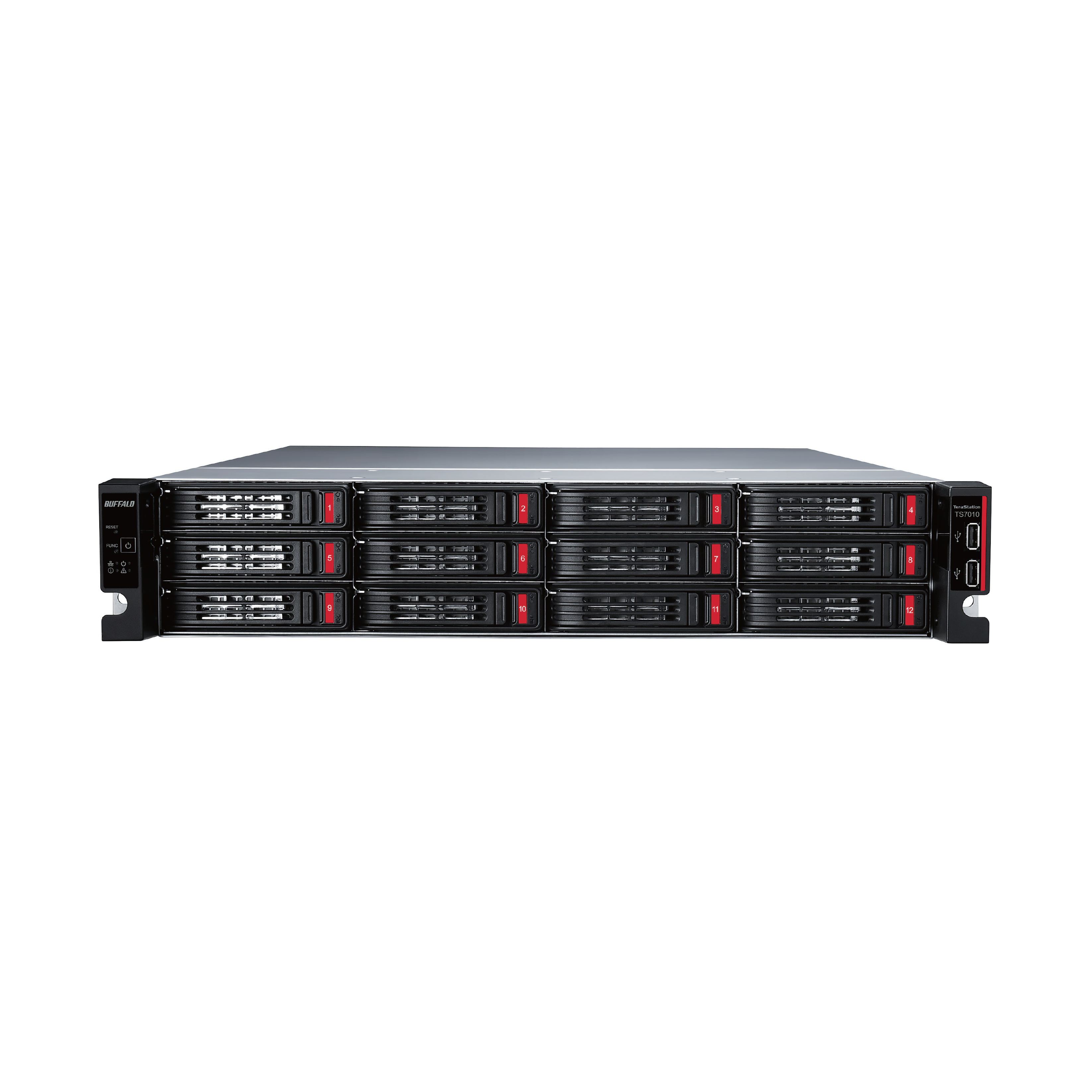

TeraStation™ 71210RH Series - Rackmount
An Evolution in Enterprise-Class Network Storage
Buffalo's TS71210RH is a powerful 12-bay rackmount network-attached storage (NAS) product that marks an evolution in enterprise-level data storage solutions.The TS71210RH delivers powerful performance and provides a dynamic platform for modern data-intensive IT environments. The TS71210RH features an Intel® Xeon® quad-core processor, enterprise-grade CMR hard drives (up to 240TB total capacity) included, and 4 native 10GbE ports to enable high throughput and outstanding server performance that allow the NAS to act as storage for active data scenarios, such as large-scale data storage and backup, mission-critical file server, and more.
With expandable CPU and RAM, partially-populated models, and PCIe expansion capability for SSD caching and 25/40GbE network card support, the TS71210RH enables exceptional scalability to meet your current and future needs.
Buffalo Terastation 71210RH is FIPS 140 CAVP Validated.
Winner of CRN's Product of the Year for SMB Storage Category!
Click here to talk to a Buffalo specialist
Click to check price Click to contact sales TS7010_Datasheet_V7.2
Overview
Product Highlights
-
HIGH PERFORMANCE NETWORK STORAGE SOLUTION – Enterprise storage solution with Intel Xeon processor and enterprise-grade hard drives included. The NAS is optimized to store, share, and back up data for modern high-workload business IT environments.
-
EXCEPTIONAL VERSATILITY – Two PCIe Gen 4x8 slots for SSD caching and high-speed SFP+ network card support, along with expandable CPU and RAM and partially-populated models enable outstanding scalability to meet your current and future needs.
-
ENHANCED DATA TRANSFER SPEEDS – The TS71210RH comes with 4 native 10GbE ports to enable multi-gig ethernet speeds for accelerated network performance. Share and back up your data at enterprise-level speeds without breaking your IT budget.
-
SNAPSHOTS FOR INSTANT DATA BACKUP AND RECOVERY – Snapshots can be created and used to recover data near instantaneously, with little or no system disruptions. Quickly recover single files or entire storage volumes and protect your data from user errors, file errors, and ransomware attacks. The snapshots feature is also enhanced by the native, cutting-edge Btrfs file system.
-
ROBUST DATA PROTECTION – Secure NAS on closed system with 256-bit drive encryption, two-factor authentication, snapshots, and robust backup features for flexible on- and offsite data backup to keep your critical business data safe.
-
VIRTUALIZATION TO ACCELERATE PRODUCTIVITY – Easily integrate the TS71210RH into common virtualization platforms and enhance productivity with increased virtual application performance and greater flexibility in storage capacity allocation.
-
CLOUD INTEGRATION – Sync with Dropbox, Amazon S3, and Microsoft™ Azure and OneDrive to create a hybrid cloud for extra data security, cost savings, and versatile data backup.
-
MADE IN JAPAN – Quality select hardware and fully TAA compliant.
-
PEACE OF MIND INCLUDED – 5-year Next Business Day warranty with product registration (including hard drives) and 24/7 US-based support and data recovery services
Our Most Powerful TeraStation Yet
TeraStation 71210RH delivers enterprise-level server performance that is 98% faster than the TeraStation 51220RH business-grade NAS and offers the most powerful Buffalo NAS experience.

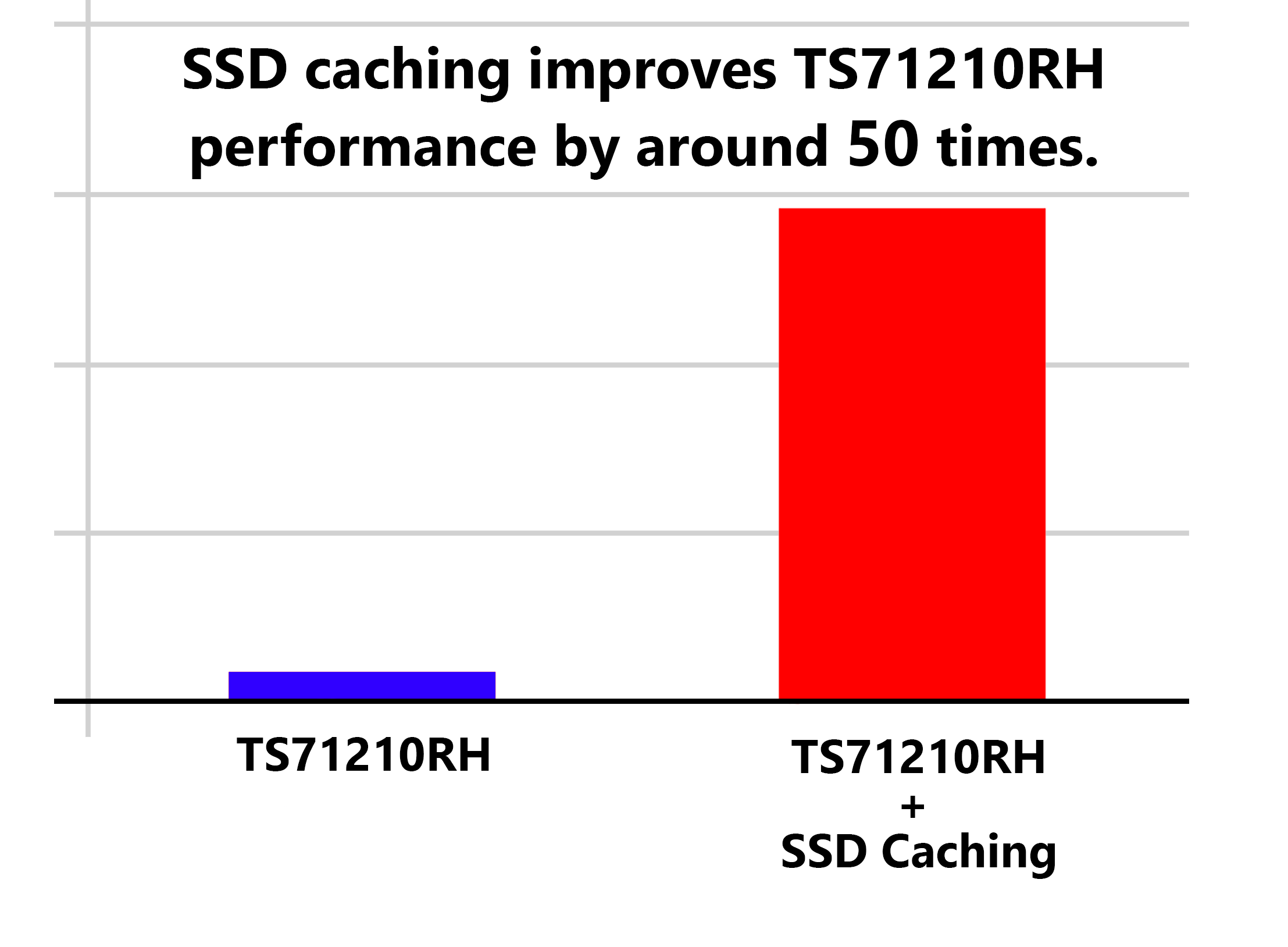

With additional SSD (sold separately) installed, you can enhance device IOPS performance by up to 50 times.
High Throughput to Accelerate Productivity
The TS71210RH comes with 4 native 10GbE ports to deliver exceptionally-fast network performance. Accelerate your business operations by enabling virtualization solutions and expedited data backup/recovery without missing a beat.
Exceptional Versatility with Expansion Options
The TS71210RH comes with built-in scalability. Two PCIe Gen 4x8 slots for SSD caching and 25GbE network card support provide additional performance boosts as needed, and expandable CPU and RAM offer extra power to stabilize performance in any environment as you see fit.
Leverage Virtualization to Optimize Your Business
Enable fast deployment and integration into Microsoft and VMware virtual environments and enjoy increased virtual application performance and greater flexibility in storage capacity planning and allocation. Back up virtual machines to the TeraStation to protect your data from hardware failure.
The Most Secure TeraStation Ever
TS71210RH runs on an innovative closed system to deter ransomware, and includes data product features such as two-factor authentication (2FA) for login security, AES-256 encryption, and snapshots for near-instantaneous data backup and recovery.

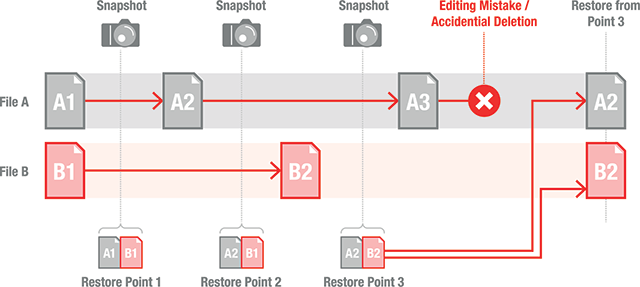

Snapshots for Instantaneous Data Backup/Restore
The TS71210RH comes with the cutting-edge Btrfs file system and snapshots so you can easily enable short-term data backup and recovery at near-instantaneous speed. Snapshots allow you to recover single files or an entire storage volume, achieve effortless file versioning, and mitigate ransomware and safeguard against human error with highly-granulated data protection.
Warranty and Support
TS71210RH is backed with the industry's #1 support. Our award-winning, North America-based technical support is available 24/7. If problems arise, just give us a call and we will work tirelessly to resolve your issue. The TS71210RH also comes with a free 5-year warranty (with product registration) for peace of mind.
Cloud Integration for Flexible Storage and Backup
You can use the TeraStation as a private cloud to easily back up data on the network, or integrate cloud services to the NAS storage to establish a hybrid cloud. The NAS server supports popular cloud services such as Amazon S3, Wasabi, Dropbox, or Microsoft Azure/OneDrive that you already use.
Reap the full benefits of cloud by retaining greater control over storage capacity and scalability to store data as you see fit. You can also keep non-essential workloads and data in the cloud while storing sensitive or essential data in your local TeraStation NAS server for an extra layer of security.
Specifications
Models
Model Name |
TS71210RH (Partially-Populated) |
TS71210RH (Fully-Populated) |
Part Numbers |
TS71210RH3204 |
TS71210RH9612 TS71210RH14412 TS71210RH19212 TS71210RH24012 |

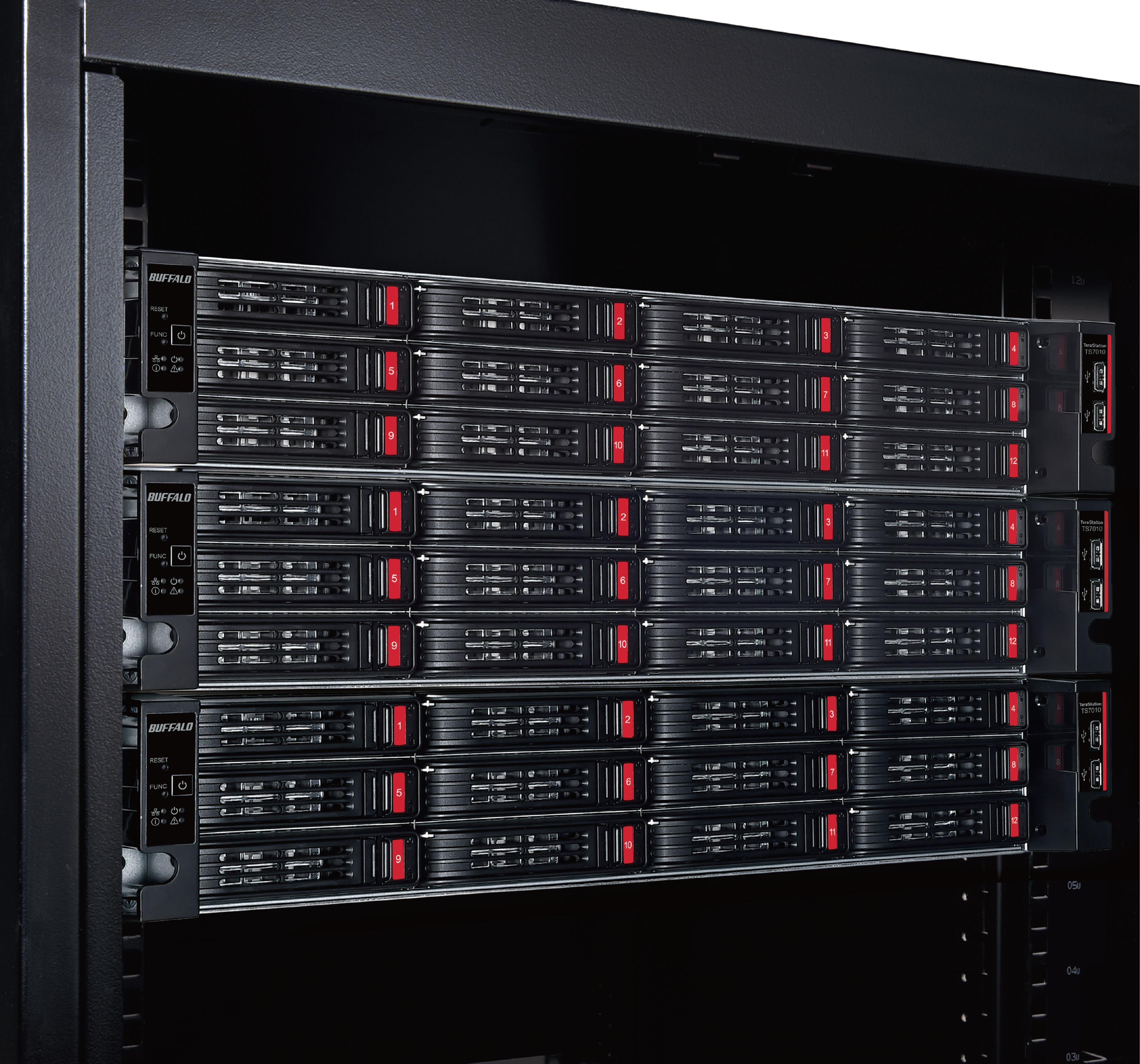

Configuration | Rackmount | Rackmount |
Country of Origin | Japan | Japan |
TAA Compliant | Yes | Yes |
FIPS 140 CAVP Validated | Yes | Yes |
Internal Hard Drives
Number of Included Drives | 4 | 12 |
Capacity Range | 32, 48, 64, 80TB | 96, 144, 192, 240TB |
Drive Type | Enterprise-grade HDD (CMR) | Enterprise-grade HDD (CMR) |
Supported RAID | 0/1/5/6/10/JBOD | 0/1/5/6/10/JBOD |
Hot Spares | Yes, with hot swapping supported | Yes, with hot swapping supported |
USB Interface
Standards Compliance | USB 3.0 | USB 3.0 |
Connector Type | A type | A type |
Number of Ports | 2x USB 3.2 Gen 1 2x USB 2.0 |
2x USB 3.2 Gen 1 |
Performance
CPU |
Intel® Xeon® D-1713NT 2.2GHz Quad-core (Turbo boost up to 3.5GHz) |
Intel® Xeon® D-1713NT 2.2GHz Quad-core (Turbo boost up to 3.5GHz) |
Memory | DDR4 16GB ECC | DDR4 16GB ECC |
Memory Expansion | Expandable up to 64GB (16GB x4)* | Expandable up to 64GB (16GB x4)* |
*While the processor will support 128GB of RAM, Buffalo engineering has determined that this imparts no additional performance benefit.
PCIe Expansion
Expansion Ports | 2x PCIe Gen 4x8 | 2x PCIe Gen 4x8 |
SSD Caching | Yes | Yes |
10GbE (SFP+)* | Yes | Yes |
25GbE (SFP28)* | Yes | Yes |
40GbE (QSFP) | Yes | Yes |
Compatible Cards | NIC Cards Compatible with TS71210RH |
Environmental & Power
Power Consumption | Max 500W Data Transfer 251W Idling 238W |
Max 500W Data Transfer 251W Idling 238W |
Power Supply | Internal AC 100-240V Universal 50/60Hz |
Internal AC 100-240V Universal 50/60Hz |
Redundant Power Supply | Included | Included |
Operating Temperature | 32˚ - 104˚F (0˚ - 40˚C) | 32˚ - 104˚F (0˚ - 40˚C) |
Operating Humidity | 10 - 85% non-condensing | 10 - 85% non-condensing |
Shipping
Unit Dimensions (L x W x H) | 29.0 x 18.9 x 3.5 in | 29.0 x 18.9 x 3.5 in |
Unit Weight | 41.7 lbs | 54.2 lbs |
Package Dimensions (L x W x H) | 38.5 x 22.9 x 10.2 in | 38.5 x 22.9 x 10.2 in |
Package Weight | 56 lbs | 66.5 lbs |
Warranty | 5 Years, along with NBD services (with product registration) | 5 Years, along with NBD services (with product registration) |

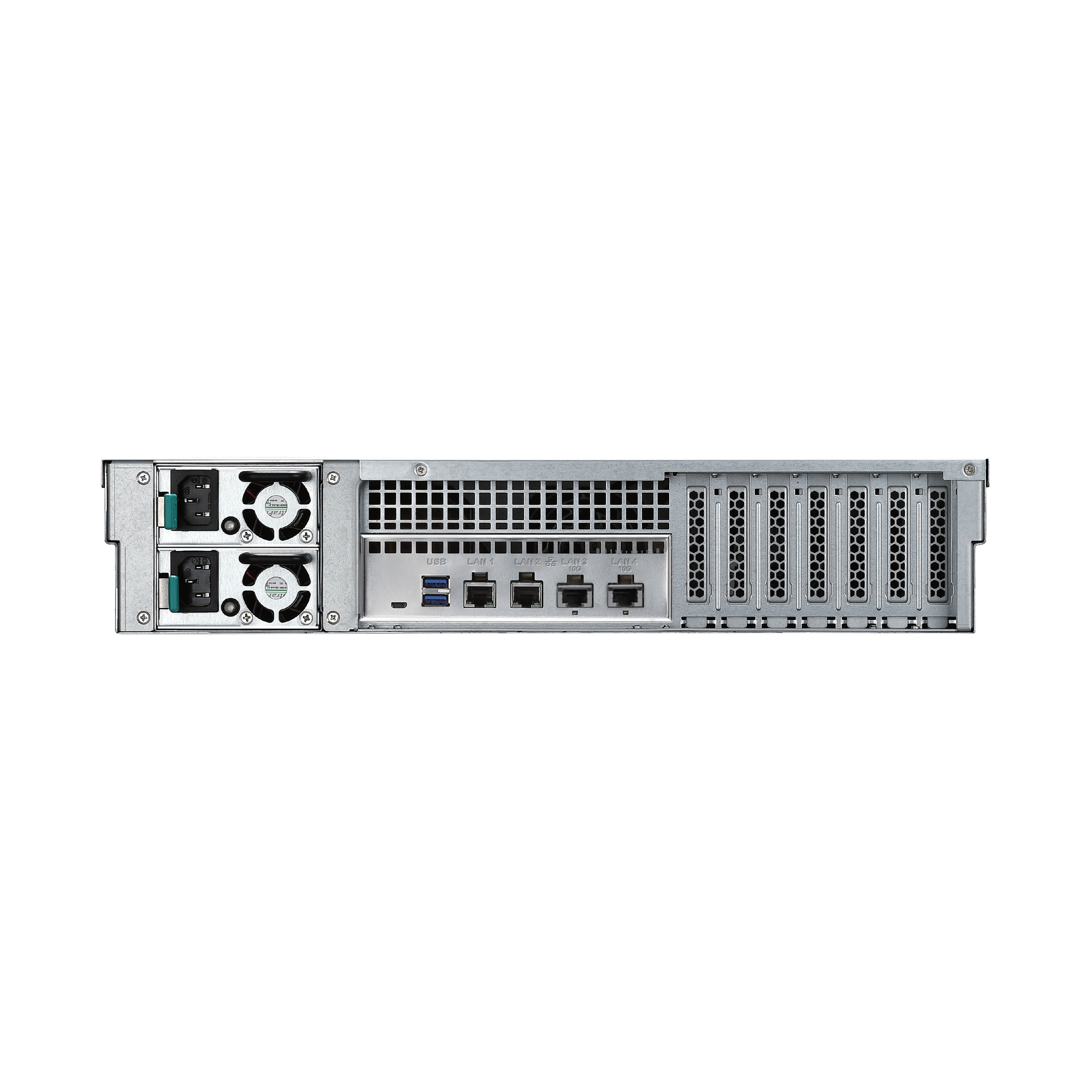

LAN Interface
Standards Compliance | IEEE802.3an (10GBASE-T), IEEE802.3bz (5GBASE-T/2.5GBASE-T), IEEE802.3ab (1000BASE-T), IEEE802.3u (100BASE-TX), IEEE802.3 (10BASE-T) | IEEE802.3an (10GBASE-T), IEEE802.3bz (5GBASE-T/2.5GBASE-T), IEEE802.3ab (1000BASE-T), IEEE802.3u (100BASE-TX), IEEE802.3 (10BASE-T) |
Number of Ports | 4 (10GBASE-T) | 4 (10GBASE-T) |
Data Transfer Rates | 10 Gbps/1000 Mbps/100 Mbps/10 Mbps | 10 Gbps/1000 Mbps/100 Mbps/10 Mbps |
Supported Protocols | TCP/IP | TCP/IP |
Network File Services | CIFS/SMB, AFP, FTP/FTPS/SFTP, NFS | CIFS/SMB, AFP, FTP/FTPS/SFTP, NFS |
Connector Type | RJ-45 | RJ-45 |
Product Features
Email Notifications | Yes | Yes |
Btrfs File System | Yes | Yes |
SMB Multichannel | Yes | Yes |
Port Trunking | Yes | Yes |
Rapid RAID change | Yes | Yes |
Replication | Yes | Yes |
UPS | Yes (USB/Network) | Yes (USB/Network) |
Active Directory | Yes | Yes |
Cloud Service Integration | Yes (Dropbox, Amazon S3, Wasabi, Microsoft Azure and OneDrive) | Yes (Dropbox, Amazon S3, Wasabi, Microsoft Azure and OneDrive) |
SNMP | Yes | Yes |
Snapshots | Yes | Yes |
Snapshot Backup | Yes | Yes |
Settings Migration from Old TeraStations | Yes | Yes |
Remote Monitoring Services | Yes | Yes |
iSCSI | Yes | Yes |
iSCSI Backup | Yes | Yes |
Server Backup Software Compatibility
Arcserve | ArcserveBackup | Version r18.0 |
Arcserve UDP | Version 8.0 | |
Acronis | Acronis Cyber Protect | Version 15 |
VERITAS | Backup Exec | Version 21 |
System Recovery | Version 18 |
Client OS Support
Client OS Support |
Windows® 11 (32-bit/64-bit), Windows® 10, Windows® 8.1 (32-bit/64-bit) Windows Server® 2022, Windows Server® 2019 macOS® X 10.13 or later |
Windows® 11 (32-bit/64-bit), Windows® 10, Windows® 8.1 (32-bit/64-bit) Windows Server® 2022, Windows Server® 2019 macOS® X 10.13 or later |
Accessories
Remote Management Service | Available for Free | Available for Free |
Compatible Hard Drives | OP-HDHU2 Series | OP-HDHU2 Series |
Compatible SSD (for SSD Cache) | OP-NVSSD Series | OP-NVSSD Series |
Compatible Memory | OP-ECCMEM-16G | OP-ECCMEM-16G |
Optional Warranty Service | Yes | Yes |
Box Contents
Included Materials |
TeraStation, Quick Setup Guide, AC Cable, Front Panel Key, and Warranty Statement |
TeraStation, Quick Setup Guide, AC Cable, Front Panel Key, and Warranty Statement |
Included Software | NASNavigator2, NovaBACKUP® Buffalo Edition (One server and ten workstation licenses - available for download after product registration) | NASNavigator2, NovaBACKUP® Buffalo Edition (One server and ten workstation licenses - available for download after product registration) |
Additional | For compliance documents such as RoHS Declaration, Certificate of Volatility, Certificate of Conformance, or others please contact sales@buffaloamericas.com. | For compliance documents such as RoHS Declaration, Certificate of Volatility, Certificate of Conformance, or others please contact sales@buffaloamericas.com. |
