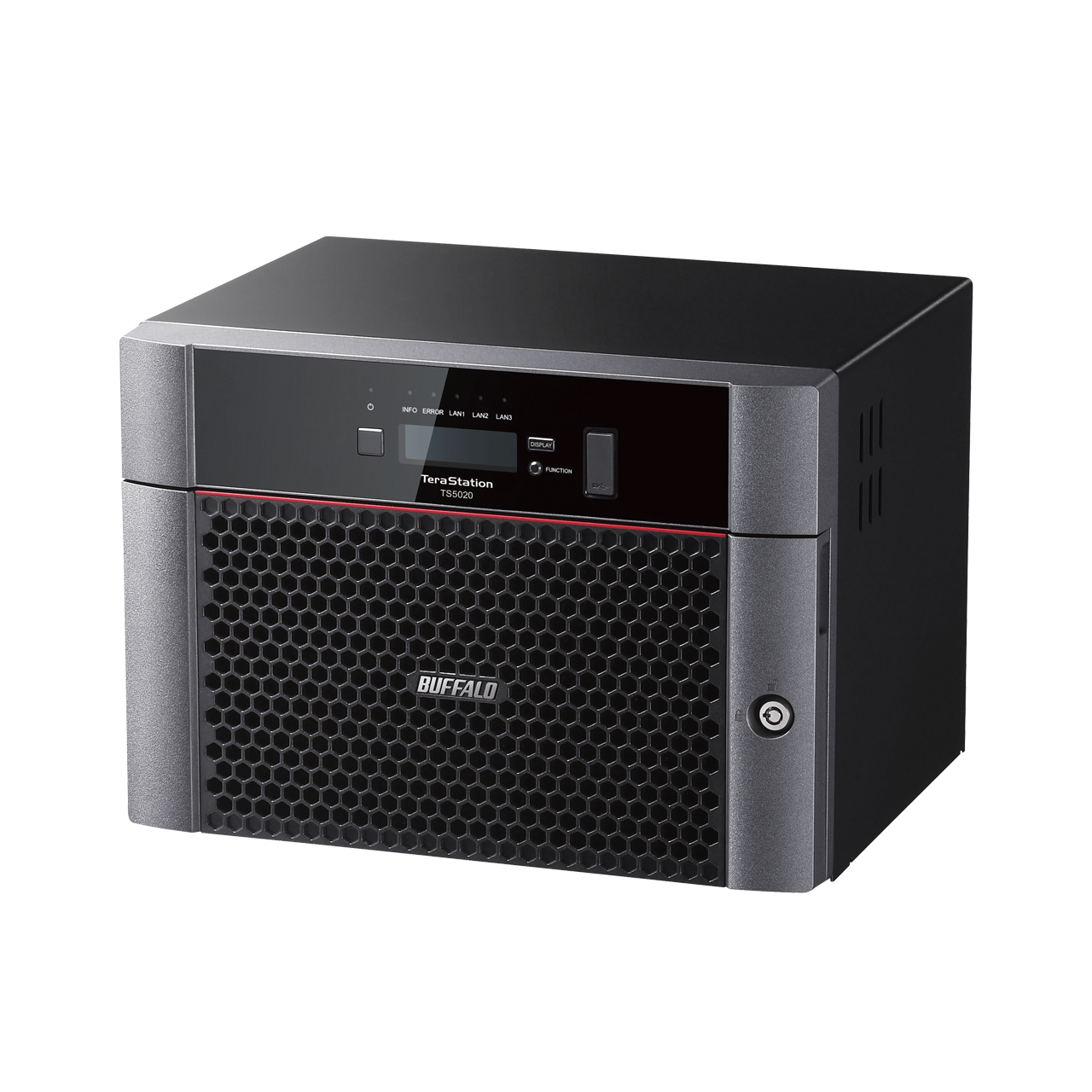

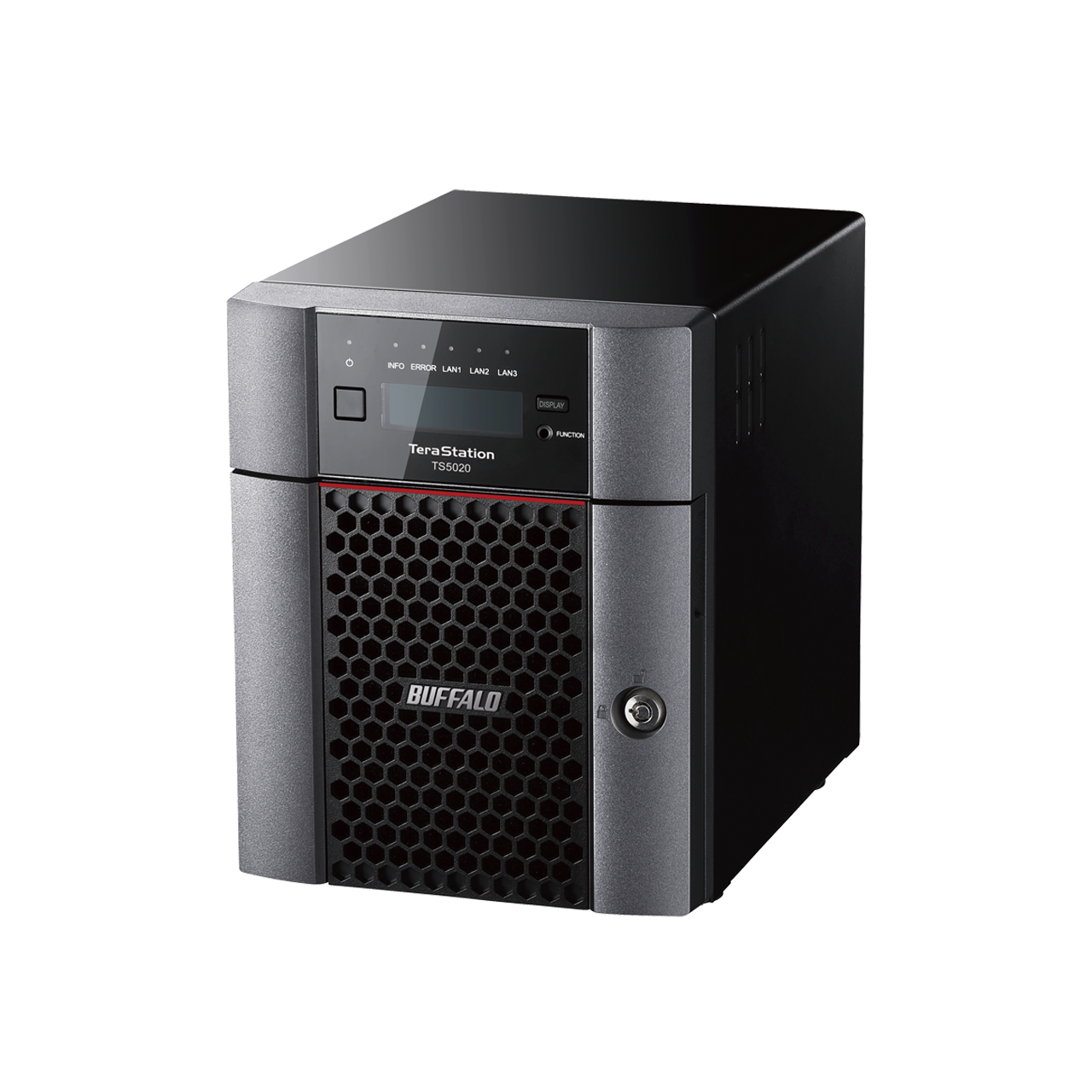

TeraStation™ 5020 Series - Desktop
High-Performance, High-Security Storage Solution - Hard Drives Included
The TeraStation 5020 is Buffalo's business-class network attached storage (NAS) product purpose-built as a secure, high-performance storage solution optimized for high workloads. Available in high-capacity desktop form factors, the TS5020 is an evolution of Buffalo's acclaimed TeraStation 5010 and 6000 Series devices, offering advanced productivity and security features such as snapshot technology for near-instantaneous data backup and recovery, VMware and Hyper-V certifications for virtualization solutions, the cutting-edge Btrfs fiile system for smoother high-load data operations, and robust data backup and security options. The TS5020 is optimized for advanced data storage and file server operations so you can store your data with peace of mind.
Buffalo Terastation 5020 Series is FIPS 140 CAVP Validated.
Click here to talk to a Buffalo specialist
Click here for Rackmount Lineup
Click to check price Click to contact sales TS5020_Datasheet_V7.2
Overview
Product Highlights
-
FULL-SCALE PROFESSIONAL NETWORK-ATTACHED STORAGE – Business storage solution with hard drives included and optimized to store, share, and back up data for environments of any size.
-
ADVANCED HARDWARE AND FIRMWARE – Product designed for stability and security, capable of handling heavy data loads without dropping performance.
-
PURPOSE-BUILT FOR DATA PROTECTION – Secure NAS on closed system with 256-bit drive encryption, two-factor authentication, and flexible backup features to keep your data safe.
-
SNAPSHOTS FOR INSTANT DATA BACKUP AND RECOVERY – Snapshots can be created and used to recover data near instantaneously, with little or no system disruptions. Quickly recover single files or entire storage volumes and protect your data from user errors, file errors, and ransomware attacks.
-
FAST DATA TRANSFERS – Native 10GbE port for high speed file transfers with no cable upgrades needed.
-
CLOUD INTEGRATION – Sync with Dropbox, Amazon S3, and Microsoft™ Azure and OneDrive to create a hybrid cloud for extra data security, cost savings, and versatile data backup.
-
MADE IN JAPAN – Quality select hardware and fully TAA compliant.
-
PEACE OF MIND INCLUDED – 3-year warranty with optional extended warranty (5-year warranty for registered TS51220 products) that includes hard drive coverage, along with 24/7, award-winning US-based support and data recovery service.
Enhanced Storage and Security

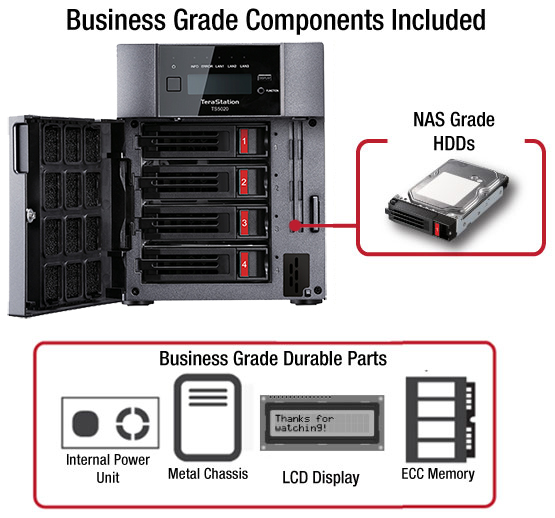

The TeraStation 5020 NAS is a secure, all-inclusive turnkey data storage and file server solution designed to optimize file operations for any business environment. The TeraStation 5020 Network Attached Storage is Buffalo’s most secure NAS system yet. It runs on a closed system, with not even the system administrator having root rights. Most competitors’ devices allow third party apps to be installed, which is a possible vector for malware and other cyberthreats. The closed system on the TeraStation NAS bypasses third party apps and the potential vulnerabilities from them to keep the NAS server safe.
With pre-tested NAS-grade hard drives included (Enterprise-grade hard drives included for TS51220RH models) and RAID pre-configured, you get out-of-the-box reliability and data protection. The TS5020 also features high storage capacity and Btrfs file system to handle heavy data workloads.
Effortless Data Backup/Restore and Ransomware Protection

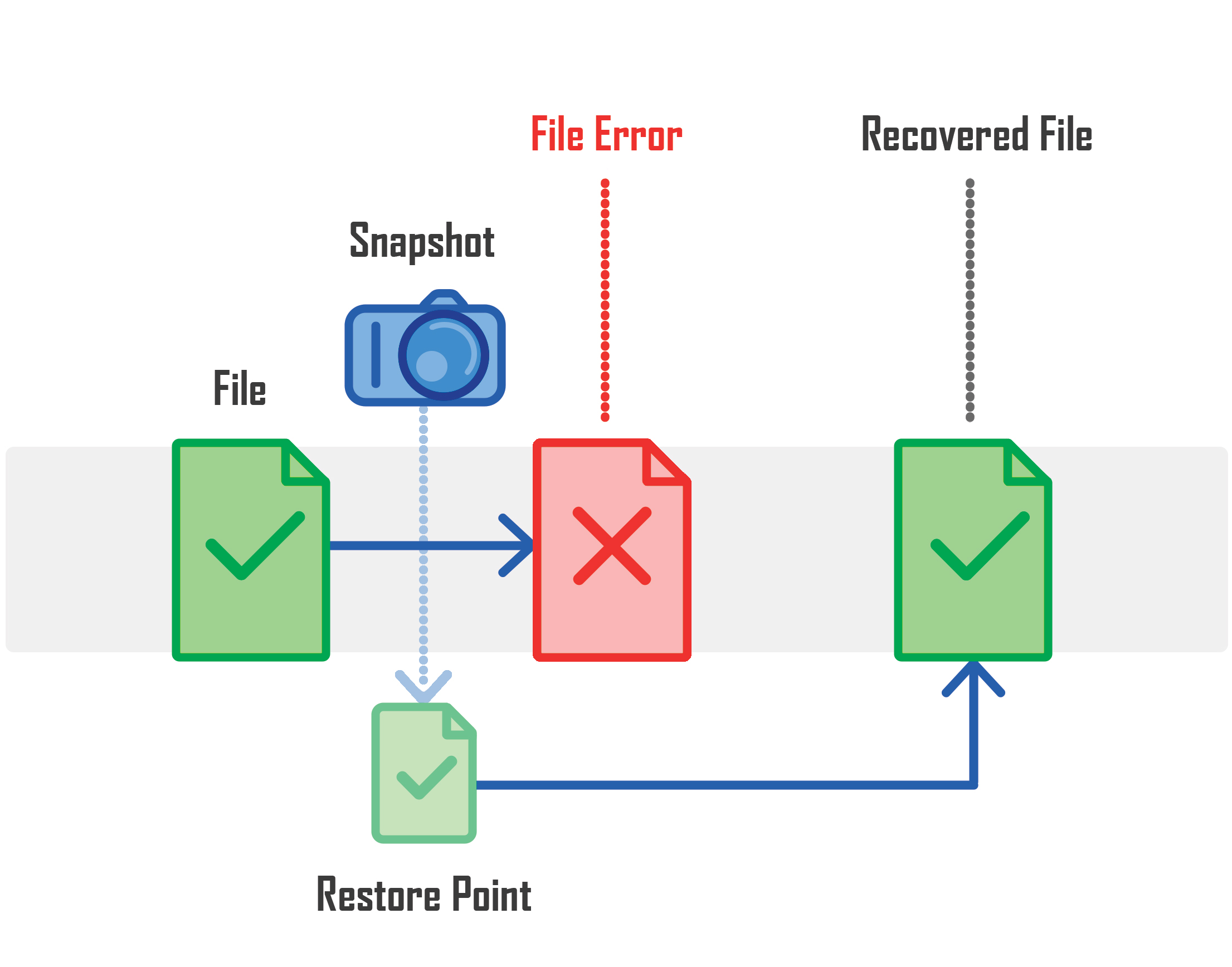

The TeraStation 5020 utilizes snapshots to quickly save and recover data. A snapshot is essentially a copy of the system data at a given point in time. When needed, you can restore to that point using a snapshot. No matter if a file was accidentally deleted due to user error or a storage volume is locked by ransomware, you can simply revert files and folders to the previously-saved state when the snapshot was created.
Snapshots can be created manually or automatically, and can be restored from near instantaneously. Snapshots also take up less space than backup data, allowing you to create a library of granulated restore points for easy file versioning. No matter if it’s a week ago or an hour ago, you can quickly restore a lost or compromised file and be on your way.
Enhanced Login Security
The TeraStation 5020 utilizes two-factor authentication (2FA) to add a key layer of login security to ensure that only authorized users can access the NAS. When enabled, users logging in to the TeraStation will also need to enter a verification code along with their username and password.
This extra layer of protection helps secure data on your NAS against hackers and ransomware. 2FA can significantly improve data security for your NAS, as it ensures that your login information cannot be easily compromised by threat actors, especially if you are logging in remotely.
Certified Storage for Virtualization
Leverage the benefits of virtualization with the TeraStation 5020. Certified for VMware® and Microsoft® Hyper-V®, the TeraStation can back up your virtual environments with a highly-reliable storage solution.
Enable fast deployment and integration into Microsoft and VMware virtual environments, and improve working efficiency with increased virtual application performance and greater flexibility in storage capacity planning and allocation, You can also back up virtual machines to the TeraStation to protect your environment from hardware failure.
Fast Transfer Speeds with Native 10GbE
Multi-gigabit Ethernet can increase network performance to enable faster data transfer speeds. The TeraStation 5020 NAS with a native 10GbE port is perfect for those who are ready to commit to high-level, multi-gigabit data transfers. By using the same Cat5e cables that are already widely-installed around the office, you can enjoy notably faster network speeds within your network environment at much lower costs.
Cloud Integration for Flexible Storage and Backup
You can use the TeraStation as a private cloud to easily back up data on the network, or integrate cloud services to the NAS storage to establish a hybrid cloud. The NAS server supports popular cloud services such as Amazon S3, Wasabi, Dropbox, or Microsoft Azure/OneDrive that you already use.
Reap the full benefits of cloud by retaining greater control over storage capacity and scalability to store data as you see fit. You can also keep non-essential workloads and data in the cloud while storing sensitive or essential data in your local TeraStation NAS server for an extra layer of security.
Warranty and Support
The TeraStation 5020 NAS is designed for stable 24/7 operation to keep your data available. TeraStation products are built in Japan, where each hard drive undergoes rigorous testing to ensure compatibility and reliability before being added to the chassis. TeraStation network storage are TAA compliant.
Buffalo provides Peace of Mind with the industry's #1 support. Our award-winning, North America-based technical support is available 24/7. If problems arise, just give us a call and we will work tirelessly to resolve your issue. TeraStation 5020 is also backed with a free 3-year warranty (5-year warranty with product registration for TS51220RH models), with optional Next Business Day/Keep Your Drive warranty options. Warranties can also be extended up to 5 years.
Specifications
Models
Model Name |
TS5420 |
TS5820 |
Part Numbers |
TS5420DN0802 |
TS5820DN3204 TS5820DN4804 TS5820DN6404 TS5820DN8004 TS5820DN6408 TS5820DN9608 TS5820DN12808 TS5820DN16008 |
Configuration | Desktop | Desktop |
Country of Origin | Japan | Japan |
Internal Hard Drives

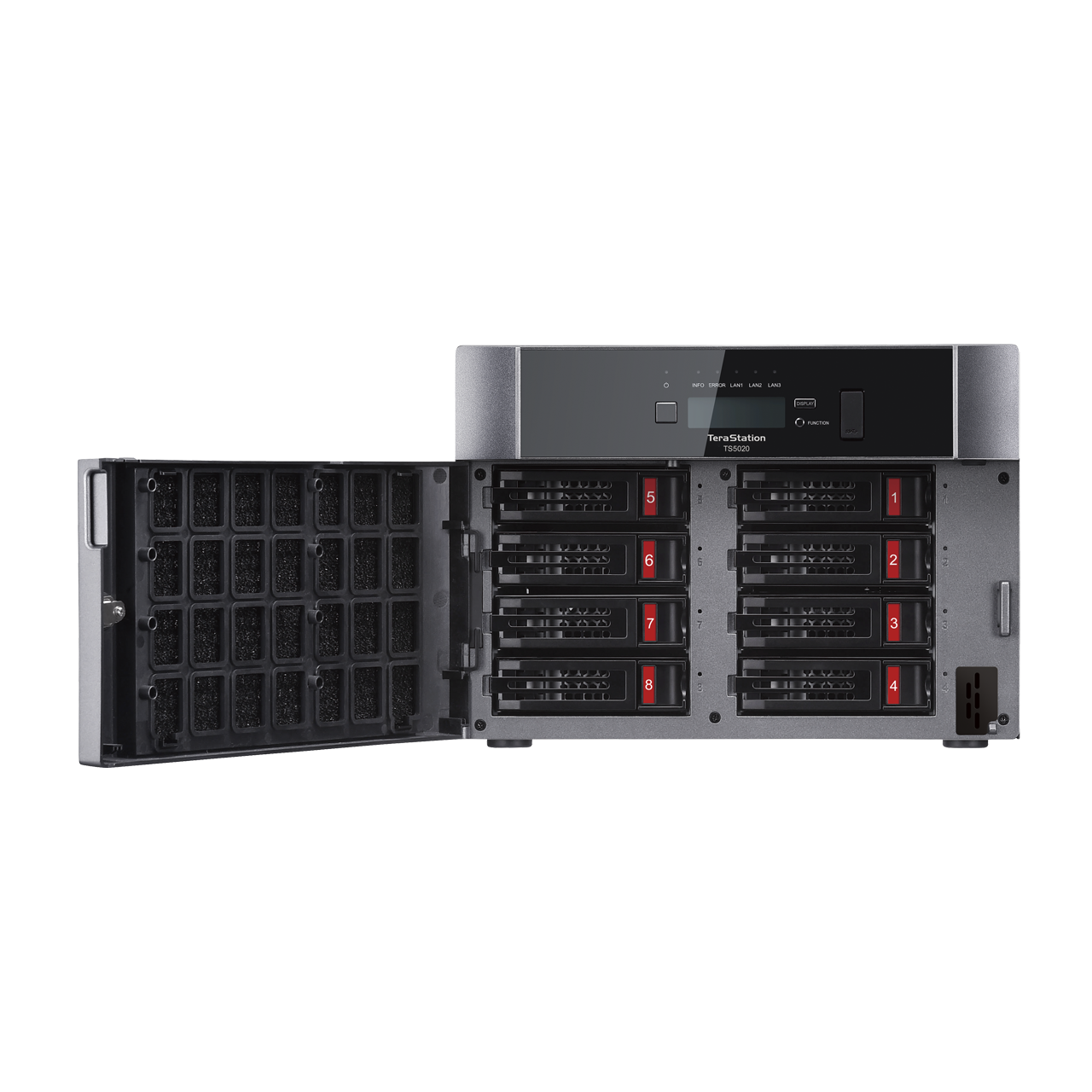

Number of Drive Bays | 4 | 8 |
Number of Included Drives | 2 or 4 | 4 or 8 |
Capacity Range | 8, 16, 24, 32, 40, 48, 64, 80TB | 32, 48, 64, 80. 96, 128, 160TB |
Drive Type | NAS-grade HDD (CMR) | NAS-grade HDD (CMR) |
Supported RAID | 0/1/5/6/10/JBOD | 0/1/5/6/10/JBOD |
Hot Spares | Yes, with hot swapping supported | Yes, with hot swapping supported |
USB Interface
Standards Compliance | USB 3.0 | USB 3.0 |
Connector Type | A type | A type |
Number of Ports | 2x USB 3.0; 2x USB 2.0 | 2x USB 3.2; 2x USB 2.0 |
Performance
CPU |
Annapurna Labs® Alpine Processor |
Annapurna Labs® Alpine Processor AL524 (2.04 GHz Quad-Core) |
Memory | 8 GB DDR4 | 8 GB DDR4 |
Environmental & Power
Power Consumption |
Max 100W Data Transfer 72W Idling 56W |
Max 150W Data Transfer 112W Idling 97W |
Power Supply | Internal AC 100-240V, Universal 50/60Hz | Internal AC 100-240V, Universal 50/60Hz |
Operating Temperature | 32˚ - 104˚F (0˚ - 40˚C) | 32˚ - 104˚F (0˚ - 40˚C) |
Operating Humidity | 10 - 85% non-condensing | 10 - 85% non-condensing |
Shipping
Unit Dimensions (L x W x H) | 9.06 x 6.69 x 8.46 in | 9.06 x 11.81 x 8.46 in |
Unit Weight | 12.41 lbs | 23.72 - 26.91 lbs |
Package Dimensions (L x W x H) | 14.1 x 12.2 x 14.3 in | 13.8 x 16.5 x 13.8 in |
Package Weight | 16 lbs | 23.80 - 31.52 lbs |
Warranty | 3 Years | 3 Years |
LAN Interface
Standards Compliance | IEEE802.3an (10GBASE-T), IEEE802.3bz (5GBASE-T/2.5GBASE-T), IEEE802.3ab (1000BASE-T), IEEE802.3u (100BASE-TX), IEEE802.3 (10BASE-T) | IEEE802.3an (10GBASE-T), IEEE802.3bz (5GBASE-T/2.5GBASE-T), IEEE802.3ab (1000BASE-T), IEEE802.3u (100BASE-TX), IEEE802.3 (10BASE-T) |
Number of Ports | 1 (10GBASE-T), 2 (1000BASE-T) | 1 (10GBASE-T), 2 (1000BASE-T) |
Data Transfer Rates | 10 Gbps/1000 Mbps/100 Mbps/10 Mbps | 10 Gbps/1000 Mbps/100 Mbps/10 Mbps |
Supported Protocols | TCP/IP | TCP/IP |
Network File Services | CIFS/SMB, AFP, FTP/FTPS/SFTP, NFS | CIFS/SMB, AFP, FTP/FTPS/SFTP, NFS |
Connector Type | RJ-45 | RJ-45 |
Product Features
Email Notifications | Yes | Yes |
Btrfs Filesystem | Yes | Yes |
Port Trunking | Yes | Yes |
Rapid RAID change | Yes | Yes |
Replication | Yes | Yes |
Failover | Yes | Yes |
UPS | Yes (USB/Network) | Yes (USB/Network) |
Active Directory | Yes | Yes |
Cloud Service Integration | Yes (Dropbox, Amazon S3, Wasabi, Microsoft Azure and OneDrive) | Yes (Dropbox, Amazon S3, Wasabi, Box, Microsoft Azure and OneDrive) |
Boot Authentification | N/A | N/A |
SNMP | Yes | Yes |
Snapshots | Yes | Yes |
Snapshot Backup | Yes | Yes |
Settings Migration from Old TeraStations | Yes | Yes |
Remote Monitoring Services | Yes | Yes |
iSCSI | Yes | Yes |
iSCSI Backup | Yes | Yes |
Server Backup Software Compatibility
Arcserve | ArcserveBackup | Version r18.0 |
Arcserve UDP | Version 8.0 | |
Acronis | Acronis Cyber Protect | Version 15 |
VERITAS | Backup Exec | Version 21 |
System Recovery | Version 21 |
Client OS Support
Client OS Support |
Windows® 11 (32-bit/64-bit), Windows® 10, Windows® 8.1 (32-bit/64-bit) Windows Server® 2022, Windows Server® 2019 Mac® OS® X 10.13 or later |
Windows® 11 (32-bit/64-bit), Windows® 10, Windows® 8.1 (32-bit/64-bit) Windows Server® 2022, Windows Server® 2019 Mac® OS® X 10.13 or later |
Accessories
Remote Management Service | Available for Free | Available for Free |
Compatible Hard Drives | OP-HDN Series | OP-HDN Series |
Optional Warranty Service | Extended options available | Extended options available |
Box Contents
Included Materials |
TeraStation, Quick Setup Guide, AC Cable, Front Panel Key, and Warranty Statement |
TeraStation, Quick Setup Guide, AC Cable, Front Panel Key, and Warranty Statement |
Included Software | NASNavigator2, NovaBACKUP® Buffalo Edition (One server and ten workstation licenses - available for download after product registration) | NASNavigator2, NovaBACKUP® Buffalo Edition (One server and ten workstation licenses - available for download after product registration) |
Additional | For compliance documents such as RoHS Declaration, Certificate of Volatility, Certificate of Conformance, or others please contact sales@buffaloamericas.com. | For compliance documents such as RoHS Declaration, Certificate of Volatility, Certificate of Conformance, or others please contact sales@buffaloamericas.com. |
