Configuring TeraStation 3-5-7 series to sync with Amazon S3

Last Updated: 01/07/2026


Learn how to get the most from your cloud service by implementing a hybrid cloud here.

Applies to TeraStation 5010/3010/3020 series

                   TeraStation 6000/5020/3030/71210 series


For legacy TeraStation 5000/3000/7000 series please refer to this KB.

Note: This function doesn’t support Amazon S3 Glacier or S3 Object Lock.

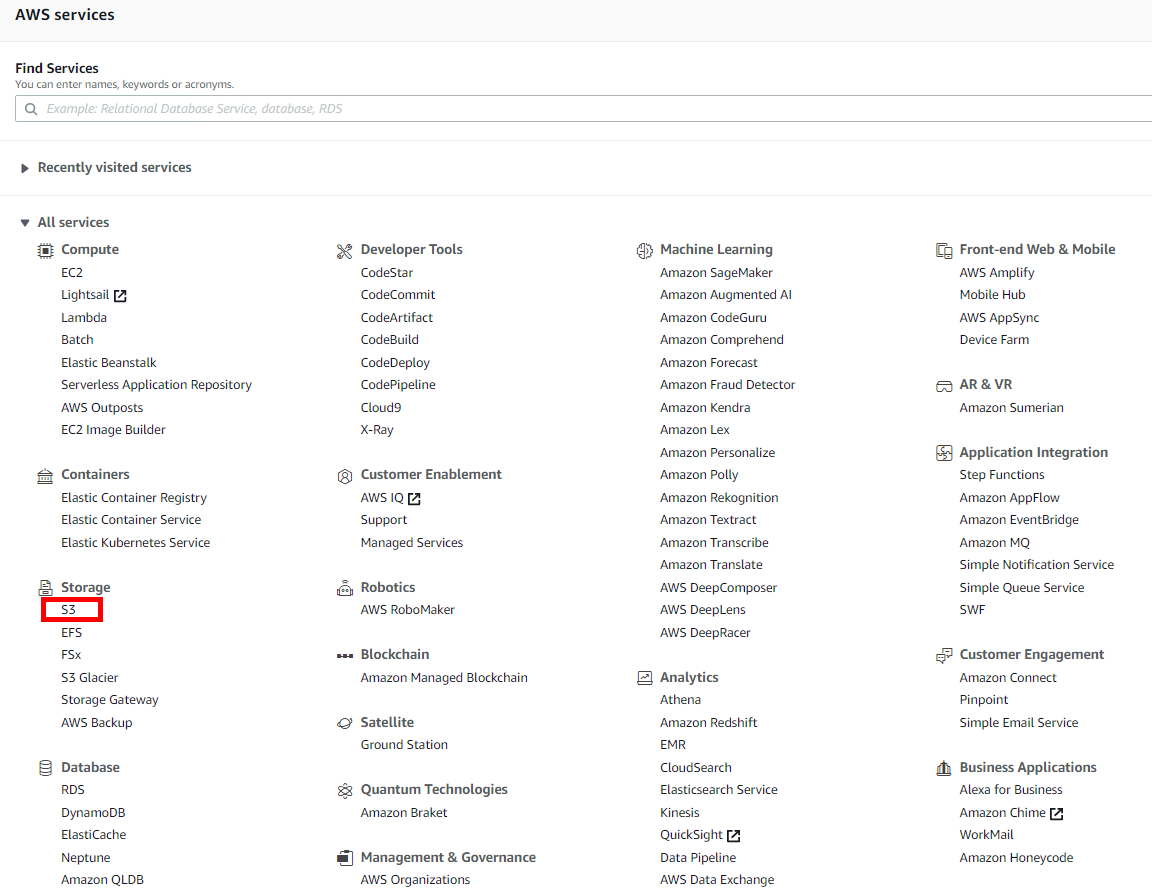

  1. Log in to the Amazon Web Services console and click “S3” under the “Storage” section.

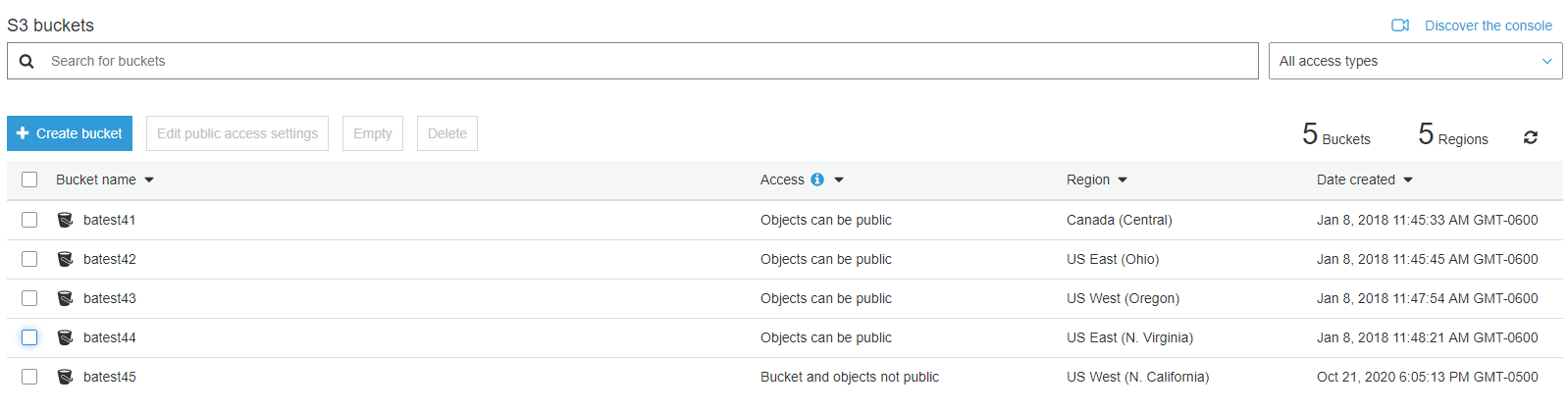

  2. You will need to have a bucket to use for syncing data. Please be aware that if you create a new bucket it may be up to 48 hours before the TeraStation will be able to access it. For our purposes we’re going to use an existing bucket.  ​
    NOTE: Buffalo TeraStation 5010/3010 support AWS version 4 signatures starting from firmware Ver 3.43.

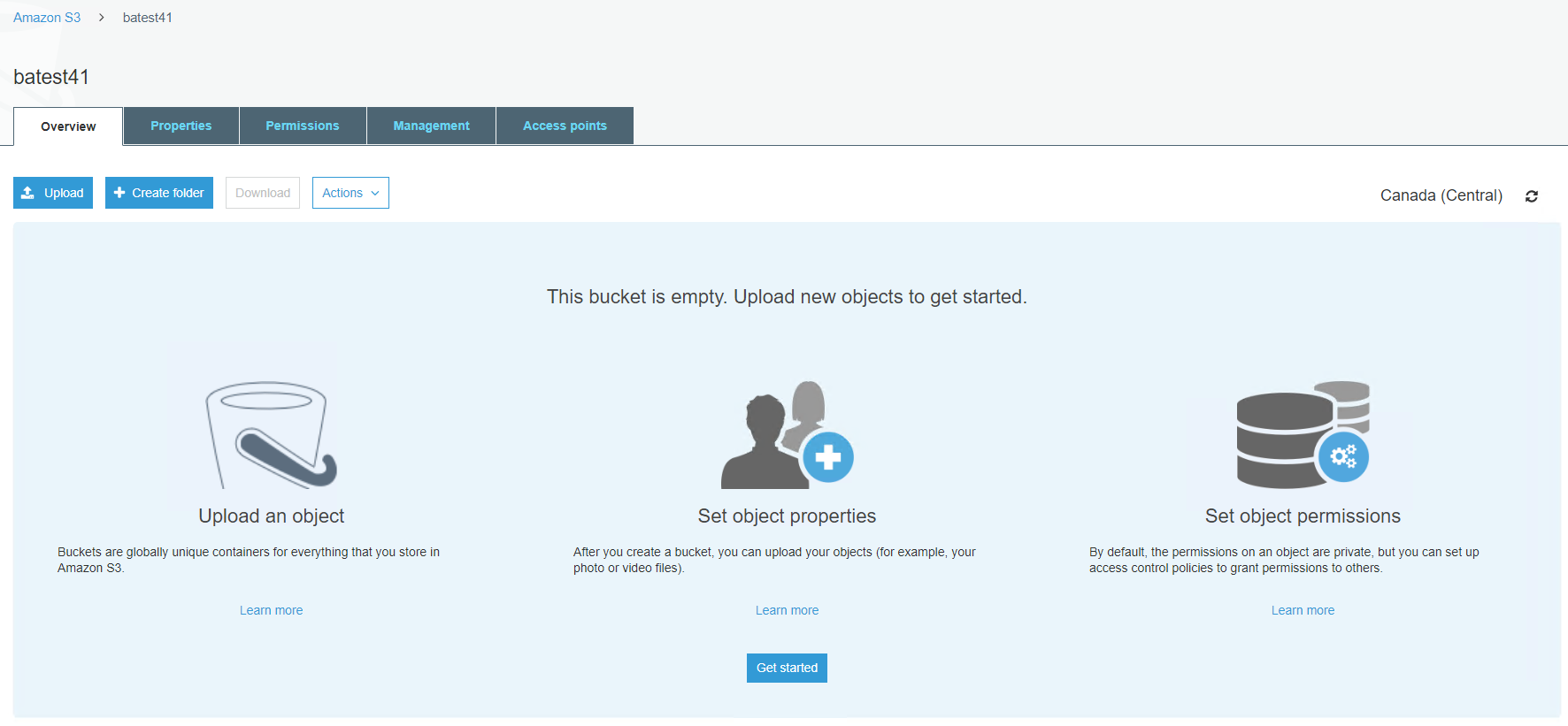

  3. Here is the empty bucket ready to use.
    NOTE: If you created a new bucket for the TeraStation to sync with you’ll need to wait about 48 hours before continuing to the TeraStation setup section.

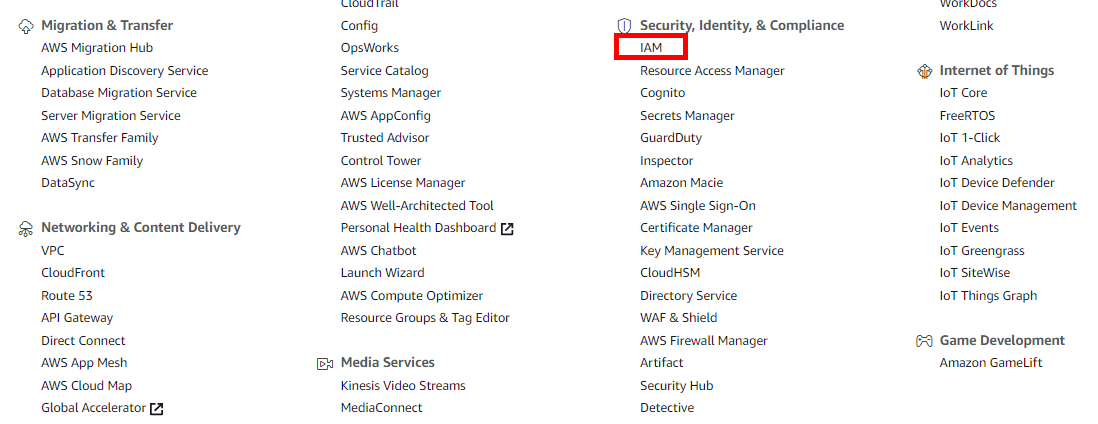

  4. Go back to the AWS console and select “IAM” under “Security, Identity & Compliance”.

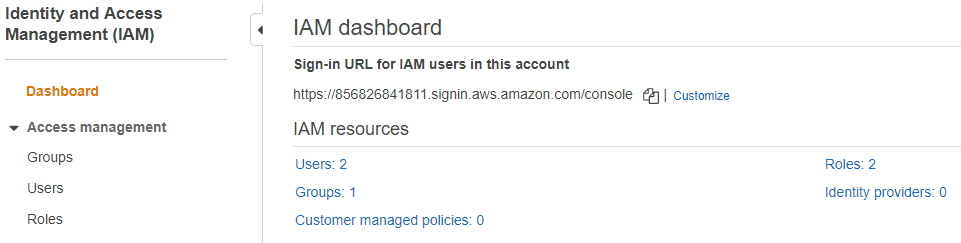

  5. Select “Users” to create a new user for the TeraStation sync.


  6. You may have existing users but it is recommended to create a new user specifically for each TeraStation sync operation for management purposes. To create a new user click the “Create user” button.


  7. Create a new user name and click Next.


  8. You have the option of adding the user to a group for permissions assignment or adding existing policies directly. If you will have several devices syncing to S3 it may be desirable to put them all in a single group. For this guide we’re just going to add the policy directly for expediency.


  9. Filter the policies for “S3” and select the “AmazonS3FullAccess” policy for this user. This will give the TeraStation full read/write access to any bucket.
    Then click Next.


  10. Verify that all settings are correct and click the “Create User” button.


  11. Go to the user summary page for your newly created user. Click the link labeled Create access key.


  12. For "Use case", Select Other or Application running outside AWS. Click Next.


  13. Add Description (Optional). Click Create access key.


  14. Copy the Access Key: Click the copy icon next to the "Access key" string (starts with AKIA...).
    Copy the Secret Access Key: Click the "Show" button on the right to reveal the password-like string, or simply click the copy icon next to it.
    Download .csv file:  Click the Download .csv file button at the bottom right to save a backup of these credentials on your computer.
     Warning: This is the only time you will ever see the Secret Access Key. If you close this page without saving it, you cannot retrieve it later; you will have to delete this key and create a new one.

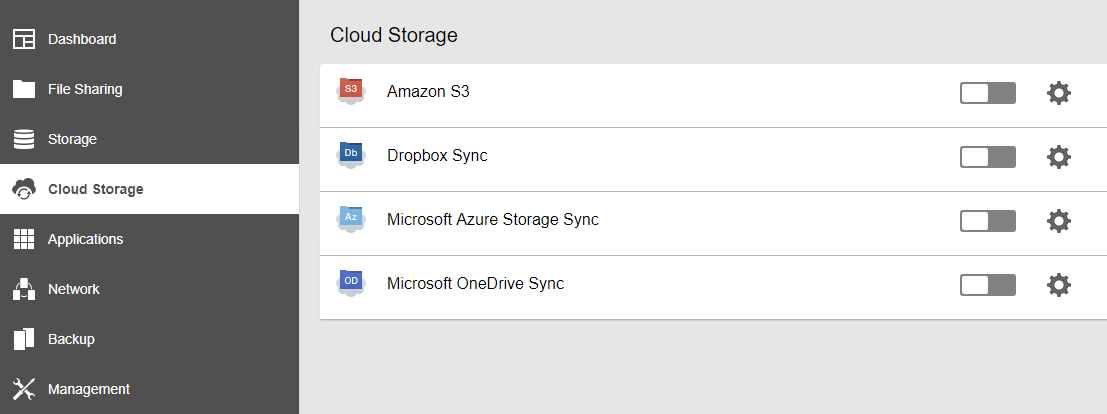

  15. Open the user interface for the TeraStation and go to the “Cloud Storage” tab. Click the configuration widget next to “Amazon S3" to configure.

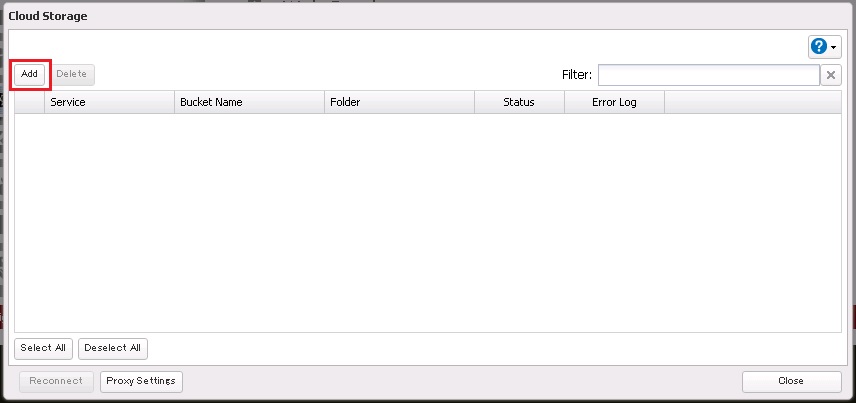

  16. This screen will list any existing configurations. Click the “Add” button to create a new sync function.

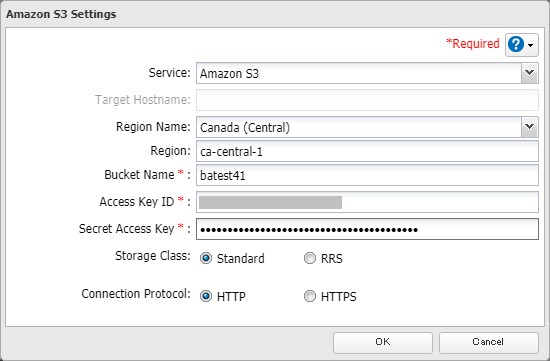

  17. Leave the dropdown on Amazon S3 (unless you’re using a different provider that supports the S3 API. If so, this functionality may not work correctly depending on the API implementation). Select your Bucket Region from the dropdown list. Add in the bucket name, the Access key ID for the user, and the Secret Access Key for the user. Once all information is entered correctly click the “OK” button.

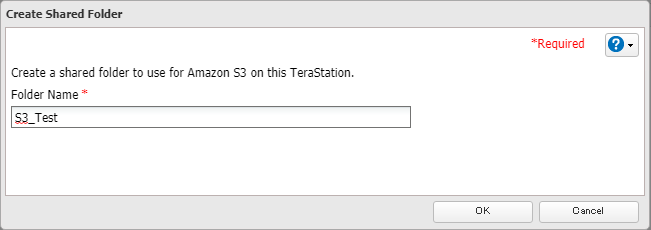

  18. The TeraStation will require a new shared folder to sync with S3. Enter the name of the new shared folder and click the “OK” button.

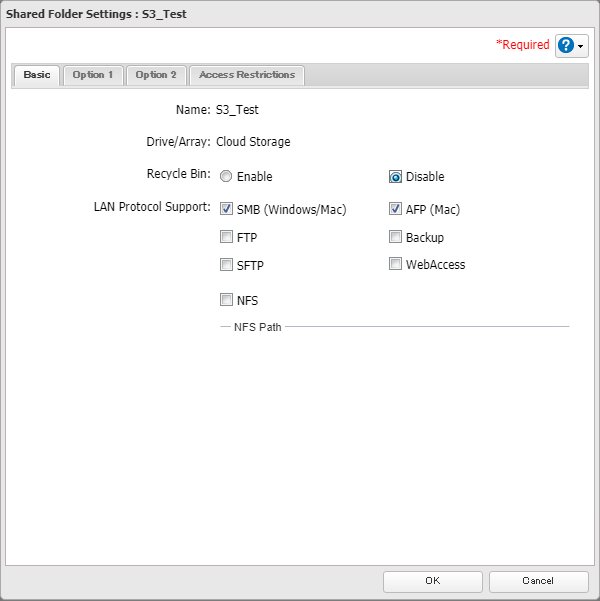

  19. You can set whatever options you like for the folder. We’re going to disable the Recycle Bin in the example because we don’t want deleted files replicated to S3. If you want to set up access restrictions or other options for the new folder it should be done here. Once you have the settings where you need them click the “OK” button to create the folder.

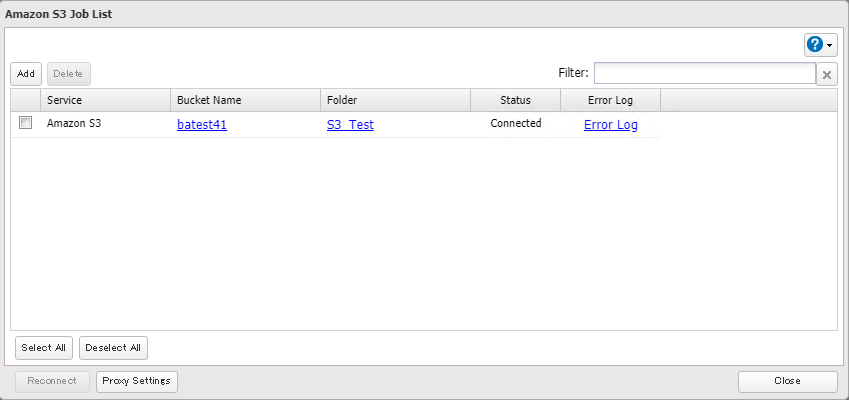

  20. Once the process completes the new sync setup will appear in the list. If you encounter any errors go back and make sure all steps were completed correctly.


The service is now set up and configured. To test just add a file or files to the folder on the TeraStation and they should be immediately synced to the S3 bucket.
